Max.Width of film (mm)

450mm / 330mm / 750mm  also available

Max.diameter of film roller

280mm

Packing Speed (Cycle/H)

700-900Times/Hour(MAP)

800-1200Trays/Hour(When only sealing)

Max.Sealing size (mm)

One die plate output 2trays,Max 200*140mm

One die plate output 1 tray,L≤300mm,W＜200mm

Tray deep 20-80mm; Customized Max can 110mm

Material of tray

PP/PE/PET/PS

Vacuum Pump Capacity (m3/h)

63m³/h     ZD Pump

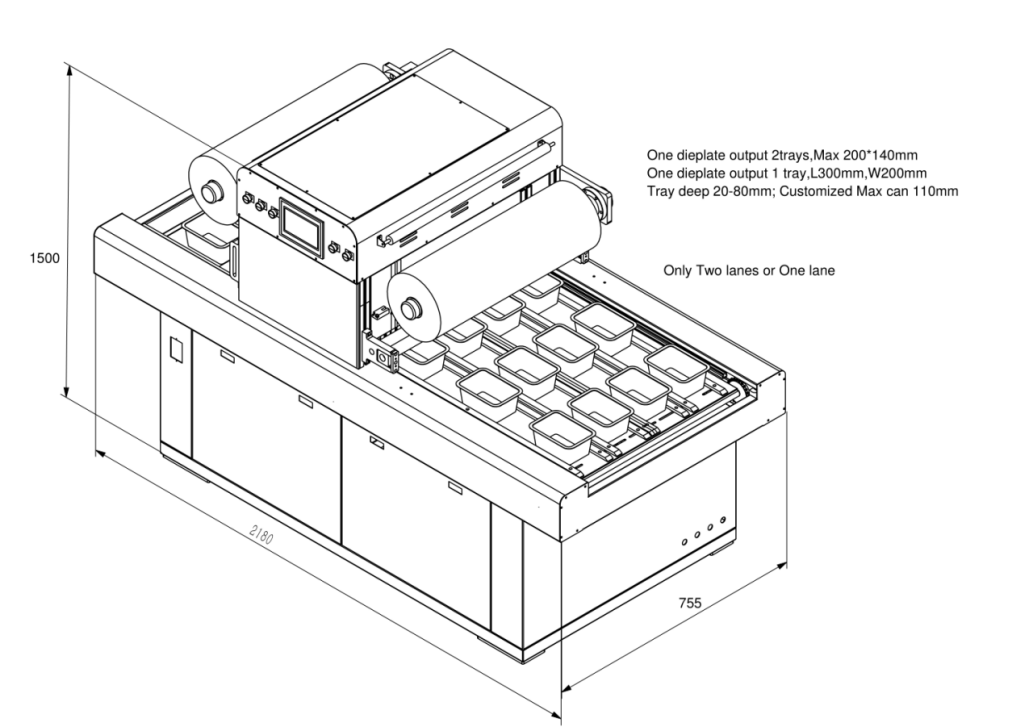

Machine Dimensions (mm)

2180*755*1500mm

Electrical Requirement (V/Hz)

400V 50HZ/3Phases

Consume Power (kw)

4.5KW

Air pressure(Mpa)

0.6-0.8

Gross Weight (Kg)

About 500KG
