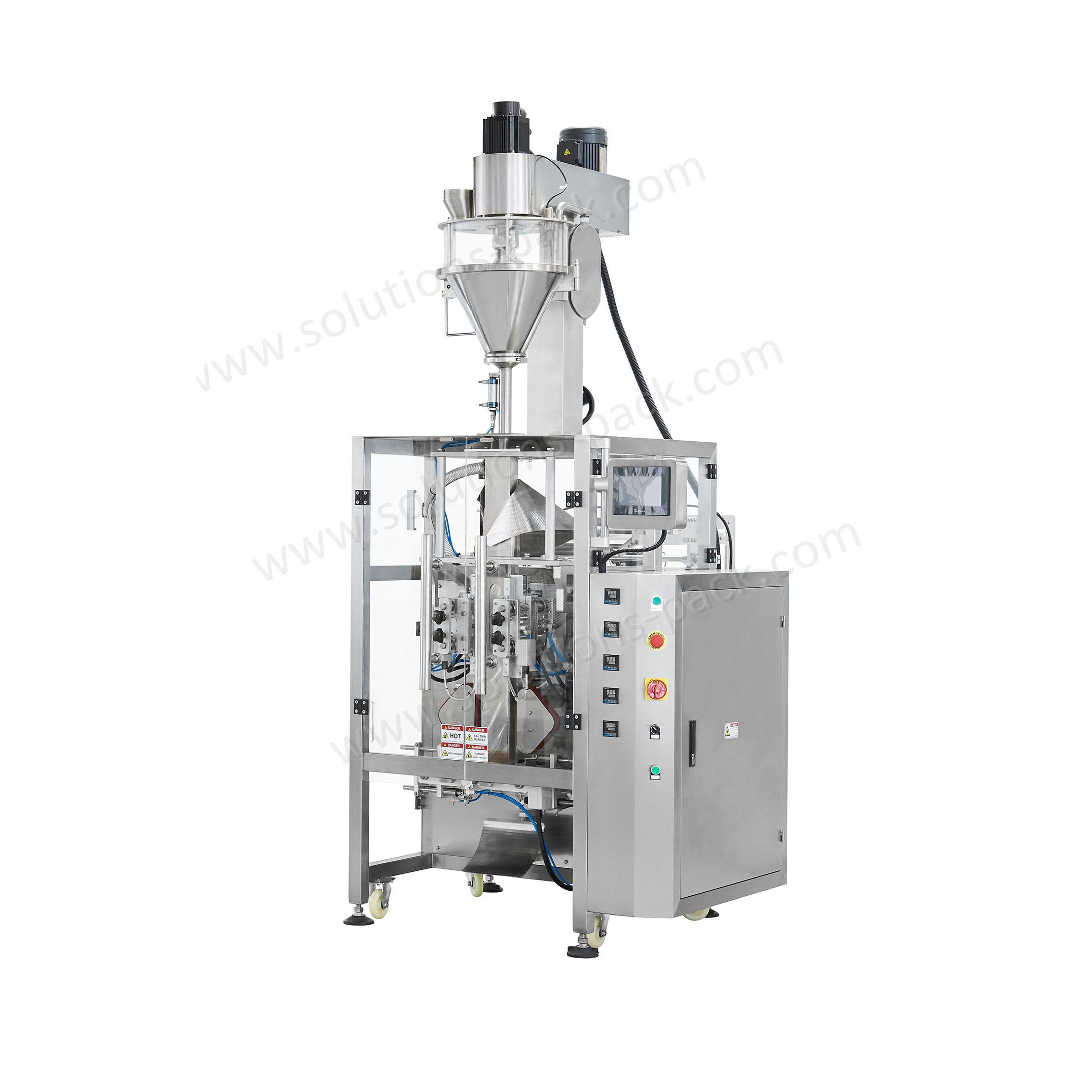

50g-5kg Automatic Powder Packaging Machine

Application:

The vertical packaging machines (VFFS) are used for the forming, filling and sealing of plastic bags.

Appropriate for dosing of powder products such as milk powder, sugar powder, coffee powder, wheat flour, detergent powder, coconut powder, etc.




Details:

Suitable materials

Most widely-used materials are thermo-sealable films with single or double layers, such as PP-PP, PP-PE, PA-PE, PE-PET, BOPP, CPP, and single-layer PE film etc.


Tel/Whtasapp: 18664230858
Feature:
Application:
Samples:
Specification:
Combined Parts:
Inquiry
Feature:

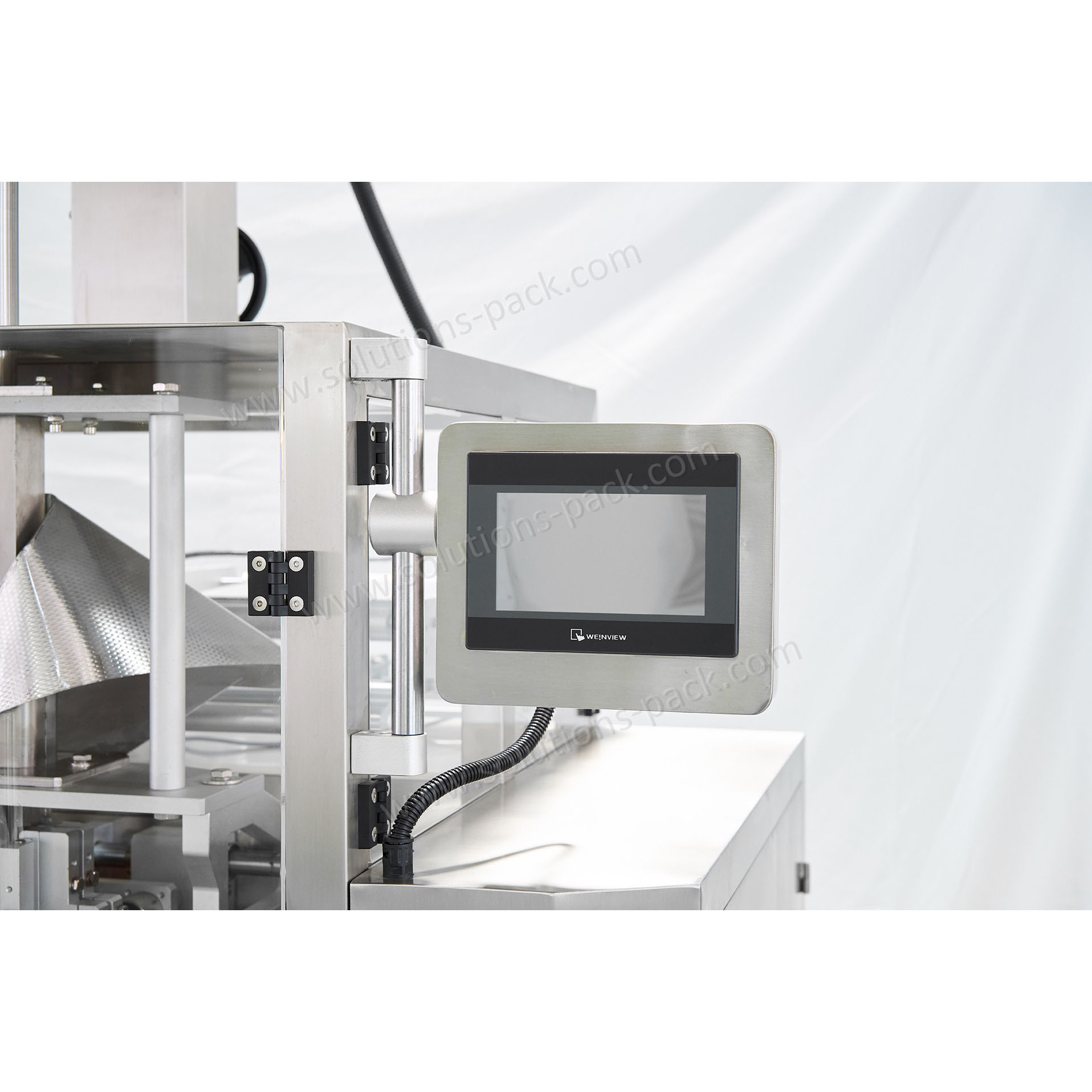

1. Steady working,Vertical packing machine with Wenview touch screen and PLC control,easy to operate,all 304 stainless steel;

2. High accuracy,Adopt servo motor control screw speed, high measurement accuracy;

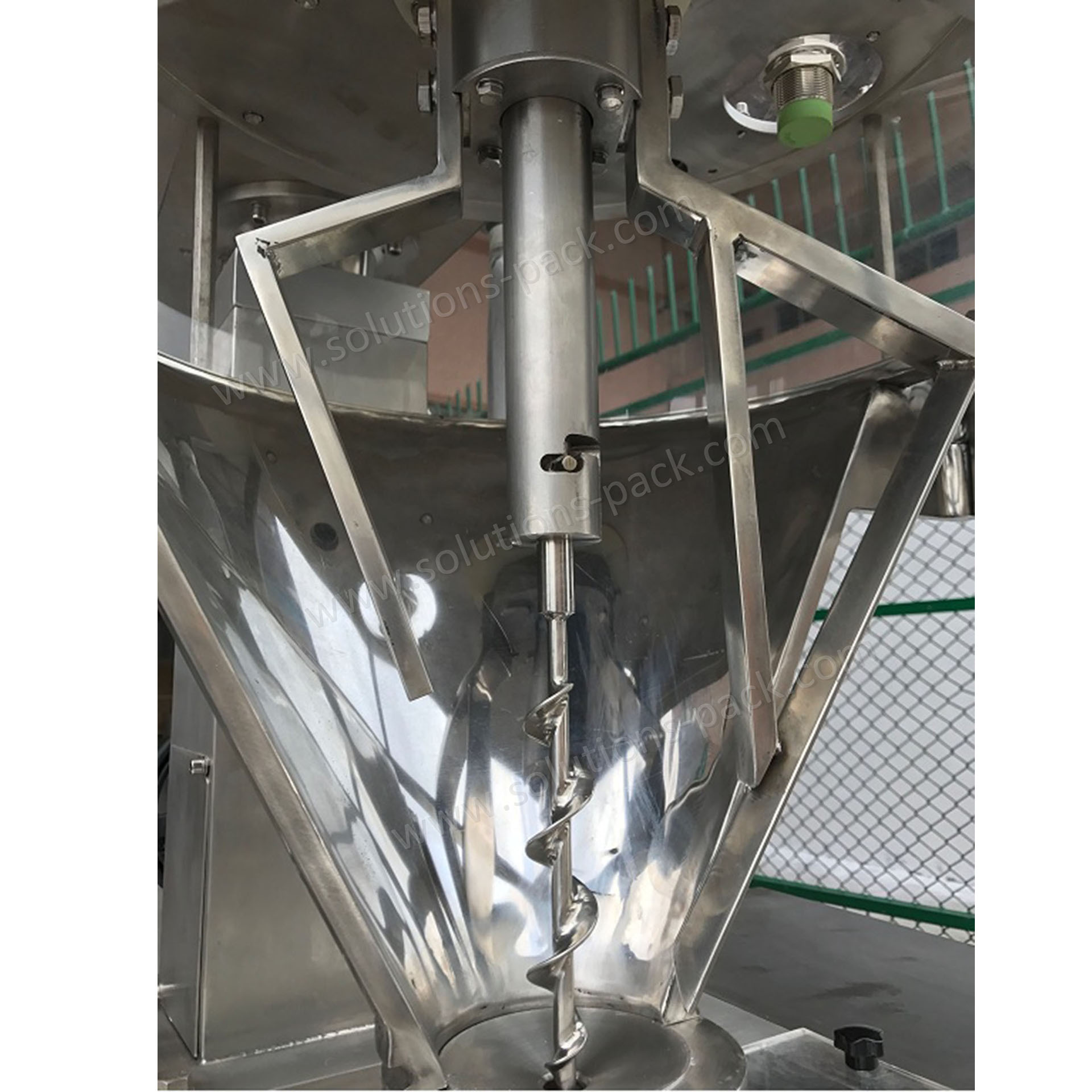

3. Avoid dust, The screw deep into the bottom of the bag former, making machine to avoid dust and ensure the beautiful sealing of the bag;

4. Easy clean, The measure hopper can be disassembled quickly. cleaned and repaired conveniently;

5. High compatibility, it is easy to combine with other packaging machine;

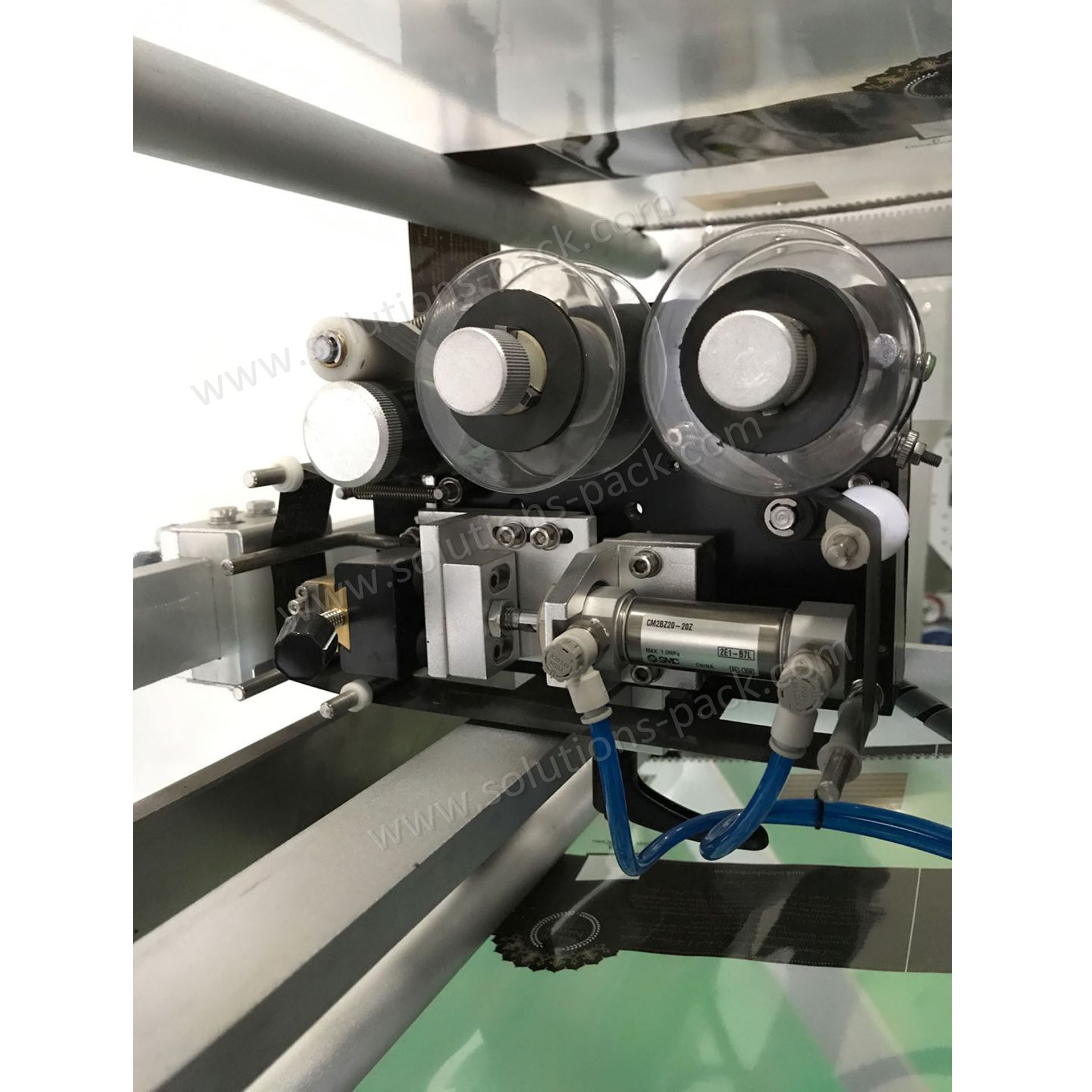

6. Full automatic,Bag-forming, measuring, filling, printing,cutting , finished in one operation;

7. No waste materials, color mark tracking sensor achieve accurate position and forming sealing according to film design.

8. Automatic warning and safety protection, Automatic and protective warning function makes minimum loss.


Application:

The vertical packaging machines (VFFS) are used for the forming, filling and sealing of plastic bags.

Appropriate for dosing of powder products such as milk powder, sugar powder, coffee powder, wheat flour, detergent powder, coconut powder, etc.


Samples:

50g-5kg Automatic Powder Packaging Machine(图1)


Specification:

Item No.

V320

V420

V520

V620

V720

V820

V1050

Film width

120-320mm

160-420mm

180-520mm

180-620mm

200-720mm

200-820mm

300-1050mm

Bag sizes

W:50-150mm

L: 50-200mm

W:60-200mm

L: 60-300mm

W:70-250mm

L: 80-400mm

W:80-300mm

L: 80-450mm

W:80-350mm

L:100-480mm

W:250-400mm

L:100-500mm

W:250-500mm

L:100-600mm

Max film width

320mm

420mm

520mm

620mm

680mm

830mm

1050mm

Max.packing speed

60 bags/min

60 bags/min

60 bags/min

60 bags/min

60 bags/min

50 bags/min

50bags/min

Power/Voltage

2.5KW/220V/50HZ

3KW/220V/50HZ

4KW/220V/50HZ

5KW/220V/50HZ

5KW/220V/50HZ

5KW/220V/50HZ

5.5KW/220V/50HZ

Gas pression

0.6MPa

0.6MPa

0.6MPa

0.6MPa

0.6MPa

0.6MPa

0.6MPa

Gas consumption

0.3 m³/min

0.4m³/min

0.4m³/min

0.8m³/min

0.8m³/min

0.8m³/min

0.8m³/min

Packing style

Pillow bag is standard one,520/720/820 model available for quattro bag/inclined type

Machine size

LxWxH

1067x1026x1288mm

1388x1116x1536mm

1400x1000x1650 mm

1700x1250x1950 mm

1780x1350x2000mm

1600x1530x2110mm

1700x1630x2210 mm

Machine weight

350 KGS

450 KGS

680 KGS

750 KGS

900 KGS

1000 KGS

1100 KGS

Option device

1.Date coding printer, 2.Air-filling device, 3.Punching device, 4.Tear notch device
