Shrink Sleeve Labeling machine

Application:

Application bottle:It's suitable for various kinds of bottle types, for example: round bottles,square bottles,flat bottles, curved bottle and cup-shaped,etc.



Application Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.




Details:

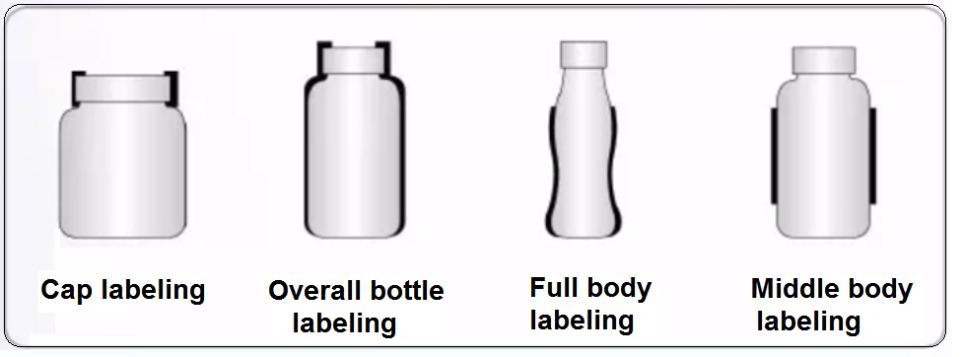

Shrink sleeve labeling machine-label position and type.png

Tel/Whtasapp: 18664230858
Feature:
Application:
Samples:
Specification:
Combined Parts:
Inquiry
Feature:

◆ Full Face Stainless Steel hosts: the whole machine is not waterproof rust;

◆ Adjustable cutter head: original cyclotron cut, double-sided blade, long life;

◆ Single positioning center guide pillar: Tag channeled more stable;

◆ synchronized dividing device: bottle feeding is more stable;

◆ Label brush under Group: sets of standard precision is more accurate;

◆ label control electric eye shelf: unique combination of tail and electric eye, improve membrane material cutting accuracy.

◆ adopted PLC programmable controller, servo motor, servo drives, inverters and sensors, in addition to using a set of standard positioning module for accurate, fast and stable.


Application:

Application bottle:It's suitable for various kinds of bottle types, for example: round bottles,square bottles,flat bottles, curved bottle and cup-shaped,etc.



Application Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.


Samples:

Sample_Shinrk sleeve labeling machine_1.png


Specification:

Model

YS-260

Labeling Speed

0-120pieces/minute

Accuracy

±1mm Except for original label printing errors

Bottle Diameter

25mm-110mm can customize according to your product

Bottle Height

30-280mm

Appliable Label Length

20-260mm

Appliable Label Thickness

0.035mm ~ 0.13mm

Applicable Roll Label Outer Diameter

Max 500mm

Label Material

PVC PET OPS

Input Power

2.5KW  220V 50/60HZ

Total Weight

About 1000KG
